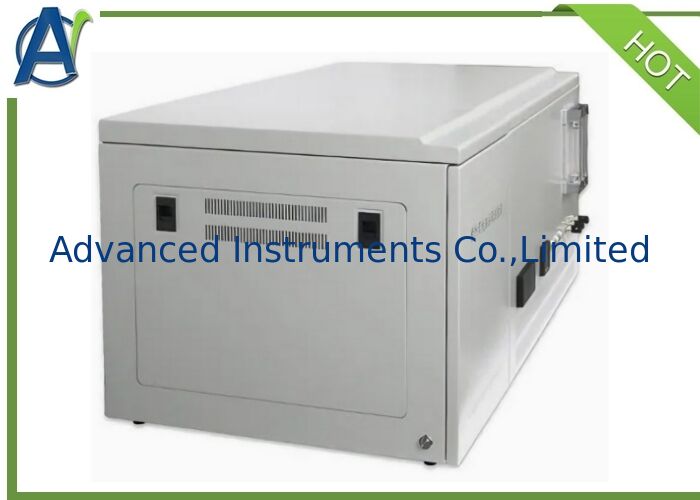

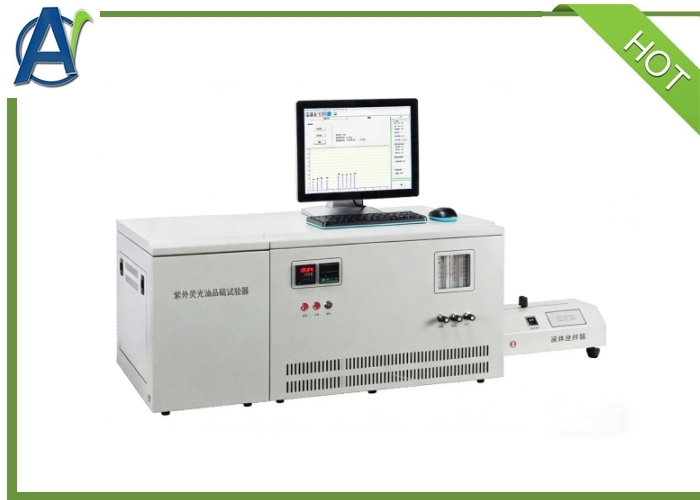

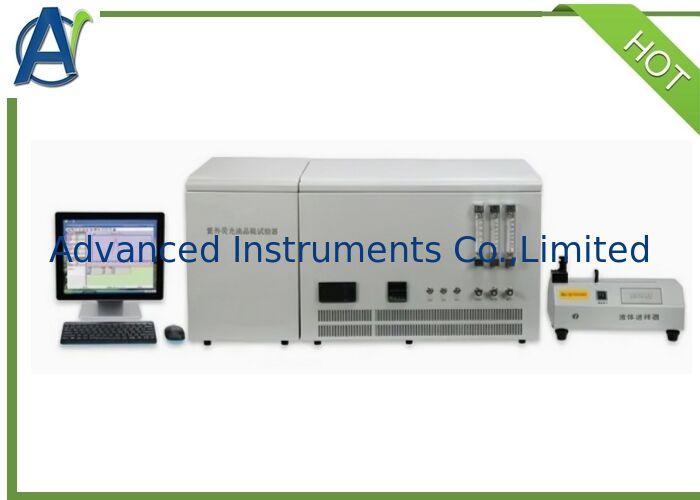

ASTM D5453 Automatic UV Fluorescent Sulfur in Oil Tester for Petroleum Products

Basisinformatie

Plaats van herkomst:	China
Merknaam:	Advanced Instruments
Certificering:	ASTM D5453
Modelnummer:	SCT-IV

Min. bestelaantal:	1 set
Prijs:	US$15000-20000/set
Verpakking Details:	multiplex kast
Levertijd:	15 dagen
Betalingscondities:	T/T, L/C, D/P
Levering vermogen:	20 stuks per maand

Beste prijs Contact nu

Teststandaard:	ASTM D5453	Voeding:	AC220 V±10%, 50 Hz
Testmethode:	Gepulseerde ultraviolette fluorescentiemethode	Staat van meetbare monsters:	Vloeibaar, gas, vast
Meetbereik:	0,1 mg/l~10.000 mg/l (vloeistof)	Lagere Opsporingsgrens:	00,05 mg/l
Temp. Bereik:	kamertemperatuur~1200℃	Nauwkeurigheid van de controle:	0,5% ± 1 ℃
Totaal stroomverbruik:	≤3 kW
Markeren:	ASTM D5453 , Automatic UV Fluorescent Sulfur in Oil Analyzer , Gasoline Sulfur Content Tester

General Introduction

This UV Fluorescent Sulfur Content in Oil Analyzer is designed and manufactured according to the requirements of the industrial standard SH / T 0689 determination of total sulfur content of light hydrocarbons, engine fuels and other oil products (UV fluorescence method).

It is suitable for the test of sulfur content of gasoline and diesel oil including national V standard.At present, it is an advanced instrument in the fields of coal, chemical industry, environmental protection and other fields, which can be widely used at home and abroad.

This UV Fluorescent Sulfur Content Analyzer is also applicable to the requirements of ASTM D 5453 standard.

Product Advantages

1.The UV Fluorescent Sulfur Content Analyzer adopts pulse ultraviolet fluorescence analysis method, with lower detection limit and higher detection accuracy, which can meet the sulfur content detection requirements of national VI and higher standards.

2. Windows Chinese operation platform, computer control, analysis, data processing and other processes, and display the working status of the whole process; Test parameters and results can be saved or printed; It can realize historical data query and graphic playback, which is convenient for comparison and analysis.

3. The UV Fluorescent Sulfur Content Analyzer adopts internationally popular circuits and imported components, which reduces the instrument noise and improves the detection sensitivity.

4. Core components: membrane dryer, filter, xenon lamp, photomultiplier tube and other main accessories are original accessories imported from the United States, Japan and Europe to ensure the quality of the instrument and the accuracy of analysis results. Xenon lamp (Japan) is an ultraviolet pulse light source with stable light intensity, slow attenuation and long service life.

5. Imported high-quality heating furnace wire is adopted, and the service life of cracking furnace is longer.

6. The UV Fluorescent Sulfur Content Analyzer has the function of delayed shutdown. At the end of the experiment, the time can be set for automatic shutdown to allow the cracking furnace to cool naturally and shut down automatically at the time, which overcomes the shortcomings of manual waiting in the past.

7. Reaction chamber: at the same time, the advanced technology of double leak proof (light and gas) machining is adopted, the detection sensitivity and repeatability are significantly improved, and the measured data results have reached the international advanced level.

8. Analysis results: the instrument has fast analysis speed (2-3min / sample), accurate and stable analysis, and the repeatability error is much better than the analysis error requirements of SH / T 0689.

9. Single point correction of standard sample reverse standard, high pressure can be adjusted arbitrarily, and there is no need to redo the standard curve.

10. Instrument calibration: the standard samples imported from the United States and Japan are used to calibrate the instrument to ensure the accuracy of instrument measurement, so as to make the instrument surpass similar domestic products in trace measurement and accuracy.

11. The open LIMS database management mode is convenient for database retrieval and management.

12. Optional solid injector; The solid injector is equipped with a refrigeration system.

13. Nitrogen digester can be selected to eliminate the interference of high nitrogen and meet the detection of high nitrogen and low sulfur.

14.Detection of back pressure in the gas pipeline, the gas circuit is cut off or the air source is not opened, and the instrument can alarm to ensure that the detector, pipeline, etc. are not contaminated.

The Technical Specifications and Parameters

1	Test method	Pulsed ultraviolet fluorescence method
2	State of measurable samples	Liquid, gas, solid
3	Measurement range	0.1mg/L~10000mg/L (Liquid)
4	Lower detection limit	17 PPM
5	Oil sample quantity	0.05mg/L
6	Repeatability error	X≤0.5mg/L;±0.1mg/L 0.5mg/L<X≤1.0mg/L; Cv≤10% 1.0mg/L<X≤5.0mg/L; Cv≤5% X>5.0mg/L; Cv≤2.5%
7	Temp. range	room temperature~1200℃
8	Temp. control accuracy	0.5%±1℃
9	High voltage range	DC 0V~900V, according to the concentration of the measured sample, set the required value through the operating system
10	Power supply	AC 220V±22V,50Hz±1Hz
11	Dimension	660mm×500mm×400mm
12	Weight	40kg (Computer is not included)

ASTM D5453 Automatic UV Fluorescent Sulfur in Oil Tester for Petroleum Products 1

1.What's the delivery time?
About 15days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
