IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing
Basisinformatie
Plaats van herkomst: China
Merknaam: Advanced Instruments
Certificering: IEC 60811-4-1:2004 ; ISO 6964
Modelnummer: AIC-52032
Min. bestelaantal: 1SET
Prijs: $5000~$10000
Verpakking Details: Multiplex kast
Levertijd: 30 dagen
Betalingscondities: L/C, T/T, D/P
Levering vermogen: 20sets/maand
Beste prijs Contact nu
Na de dienst: Reactie binnen 12 uur en 12 maanden Garantie: 1volledig jaar
Transportpakket: Multiplex kast test standaard: IEC 60811-4-1:2004; ISO6964
gas: stikstof (zuurstofgehalte <0.5%), zuurstof sollicitatie: Kabel- en draden testen
Kleur: Grijs Operatie: Automatisch
Maat metalen bekleding: 300 mm x 600 mm x 1175 mm Voeding: AC220V,50/60Hz,16A
Blaasbrander: nominaal vermogen 1 kW Brandend apparaat: automatische hoogspanningsontsteking
Lucht bron: Propaan en samengeperste lucht Controlemodus: Aanraakschermbesturing
Volume van de verbrandingskamer: ≥ 1 m³ Specificatie: 600 mm × 450 mm × 750 mm
kwarts buis: binnendiameter 30 mm, totale lengte 450 mm; Flessen wassen: 500 ml, 2 stuks/set
brandende boot: Type 77, 100 stuks/set;
Markeren:

IEC 60811-4-1:2004

,

ISO 6964

,

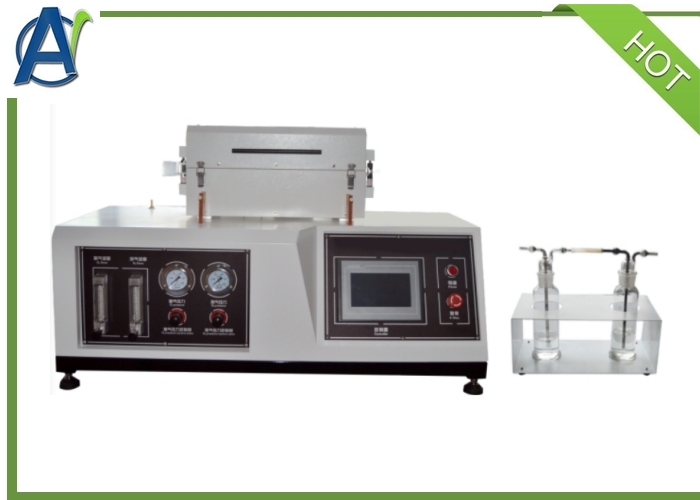

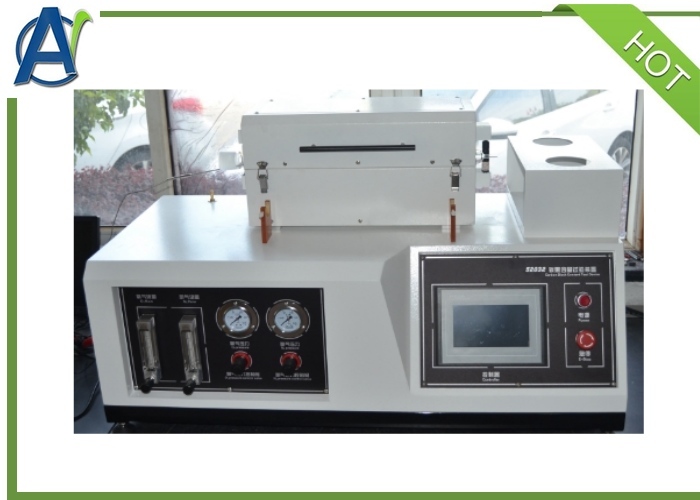

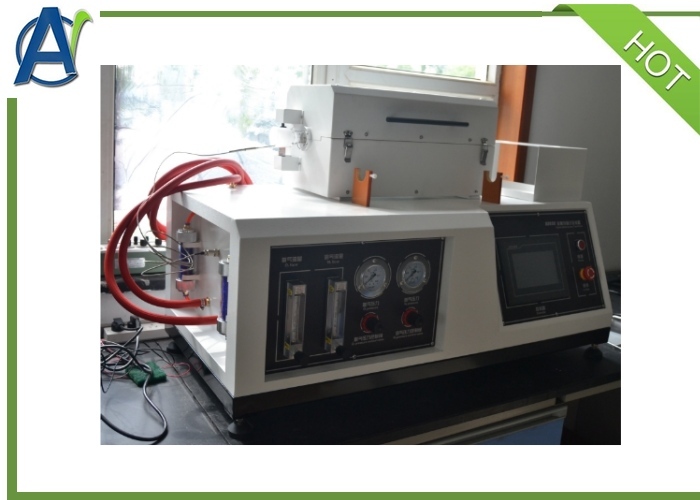

Carbon black Test Device

General Introduction
1.1 Equipment overview

Carbon black content test device is designed and produced in line with GB/T2951.41—2008 <Common test methods for insulating and sheathing materials of electric and optical cables--Part 41: Methods specific to polyethylene and polypropylene compounds - Carbon black and/or mineral filler content measurement in polyethylene by direct combustion>, used for determination of carbon black content of polyethylene, polypropylene, polybutylene plastics.

1.2 Related standards
  • ISO 6964;
  • IEC 60811-4-1:2004
  • ASTM D1603

IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing 0

Technical parameters
  1. Quartz tube: inner diameter 30mm, total length 600mm;
  2. Heating furnace: room temperature~600℃, 500mm length;
  3. Temperature sensor: K type, room temperature~1300℃;
  4. Bottle washing: 500ml, 2 pcs/set;
  5. Burning boat: Type 77, 100 pcs/set;
  6. Air source: nitrogen (oxygen content <0.5%), oxygen (customer provided);
  7. Flow meter: 0.3~3L/min.
Technical specifications
  1. Overall Dimensions: 600mm*450mm*770mm
  2. Power supply: AC 220V, 50/60Hz, 16A
IEC 60811-4-1:2004 and ISO 6964 Compliant Automatic Carbon Black Content Tester for Polyethylene Combustion Testing 1
FAQ
  1. What's the delivery time?
    About 30days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
