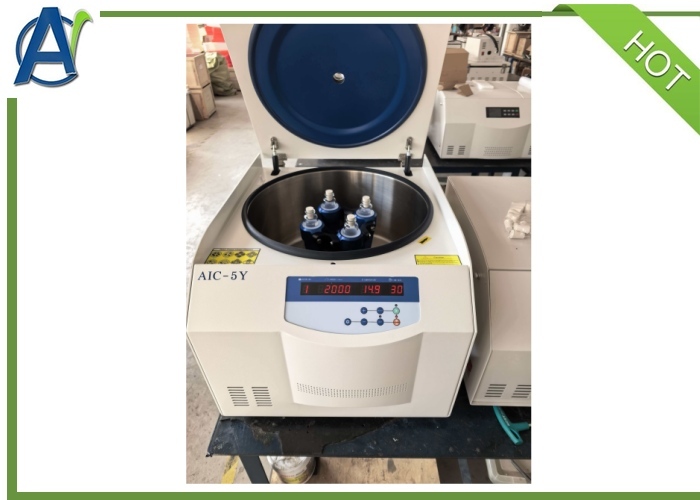

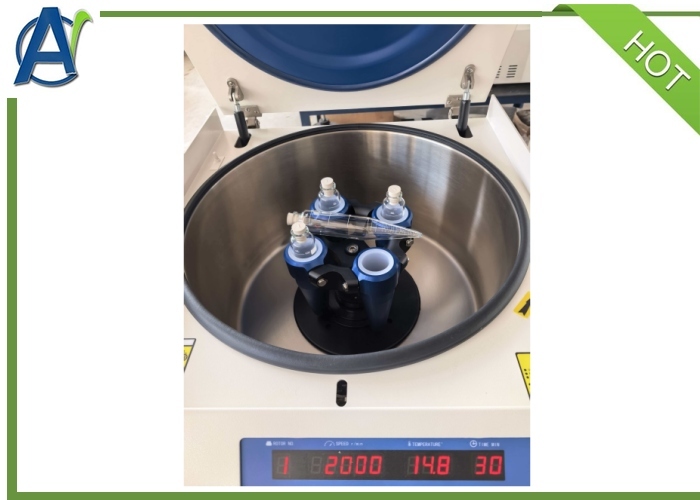

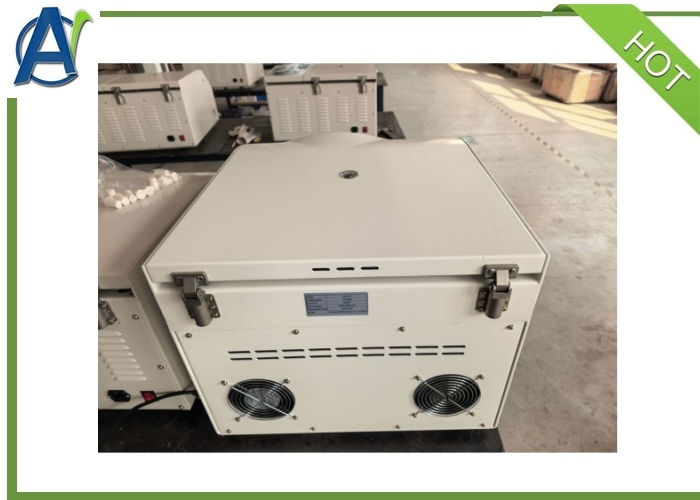

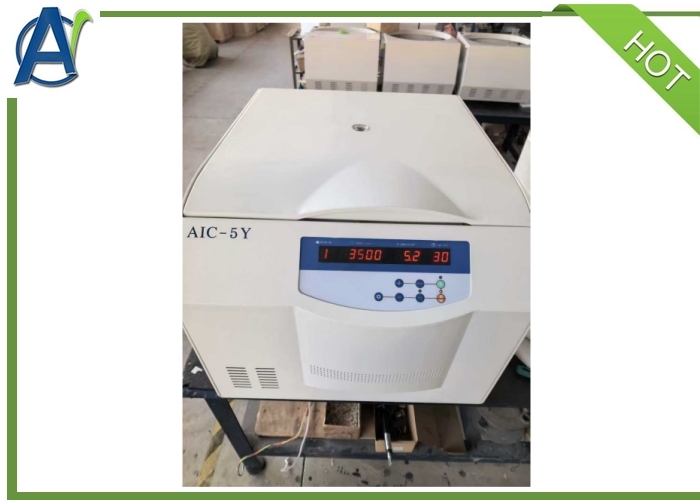

Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil

Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil
Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil
Basisinformatie
Plaats van herkomst: China
Merknaam: Advanced Instruments
Certificering: ASTM D4007
Modelnummer: AIC-5Y
Min. bestelaantal: 1 Instellen
Prijs: US$3500-4500/set
Verpakking Details: Multiplex behuizing
Levertijd: 20 dagen
Betalingscondities: T/t, l/c, d/p
Levering vermogen: 200sets per maand
Beste prijs Contact nu
test standaard: ASTM D4007 Garantie: 1volledig jaar
Transportpakket: Multiplex behuizing Trandmark: Geavanceerde instrumenten
Voeding: AC220 V 50Hz OEM-service: Beschikbaar
Softwaretaal: Engels Maximale roterende snelheid: 4000r/min
Max. relatieve centrifugale kracht: 3756*G Maximum capaciteit: 4*100 ml
Tijdbereik: 0~99min Nauwkeurigheid van rotatiesnelheid: ±10r/min
gewicht: 63 kg Dimensie: 592 mm × 440 mm × 370 mm
Markeren:

ASTM D4007

,

Total Centrifuge Test Equipment

,

Crude Oil Centrifuge Machine

General Introduction

AIC-5Y benchtop low speed centrifuge can separate,concentrate and purify specimen such as emulsion and suspension.It is designed according to GB/T6533-86,especially used to determine water and sediment in crude oil (Centrifuge method). This instrument is driven by ac variable frequency motor,rotating speed and time are displayed digitally.Electrical controlling system is controlled by mic-processor, key-press programmable method,easy operation,humanization design and beautiful appearance.
This centrifuge machine uses electronic door lock,if the door is not covered well(unlocked),the centrifuge can not be started.When it is running,press key of Lock,the door cover can not be opened.Please wait till the rotating speed is zero,press key Lock,the cover can be opened.. It adopts optimal design for damping system,the running is stable with slight shaking,low noisy and good separation performance.
This centrifuge equipment complies to GB/T6533-86 and IEC61010-2-020:1992.

Features
  1. Relative centrifugal force(RCF) can be switched to display when running.
  2. The centrifuge machine can automatically save all parameters,which can be used directly next time.
  3. When rotating speed exceeds 4500r/min,it can automatically stop to protect.
  4. Multi-rotors can be selected,makes it multifunctional.
Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil 0
The Technical Specifications and Parameters
Max.rotating speed
4000r/min
Total power
1.5kw
Max.relative centrifugal force
3756xg
Power supply
Ac220V 50Hz 10A
Max.capacity
4×100ml
Noise
≤60dB(A)
Accuracy of rotating speed
±10r/min
Net weight
63kg
Temperature setting range
Room temperature/heating to 80ºC
Temperature controlling range
±1ºC if 40~60ºC

Shortest time of speed-up and speed-down

Can be set at random

Door lock type

Electronic door lock

Timing range

0~99min

Diameter of centrifugal chamber

500mm

Motor

AC varied frequency

Display screen

Digital

Overall dimension

592×440×370mm(L×W×H)

Driving mode

Direct driving
Laboratory Centrifuge Test Equipment for Water and Sediment in Crude Oil 1
FAQ
1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
