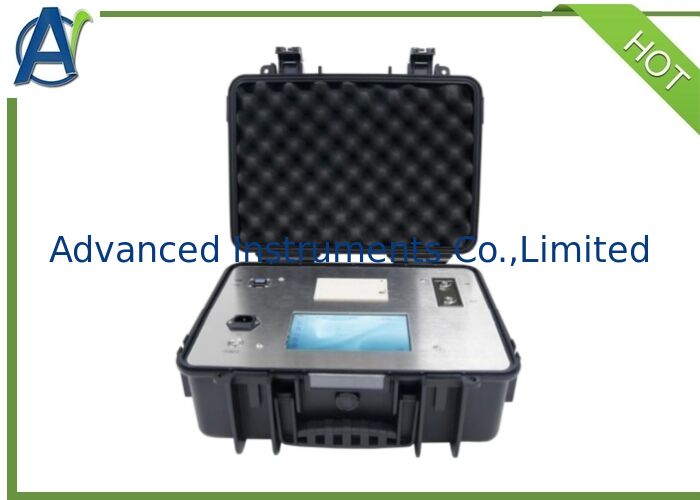

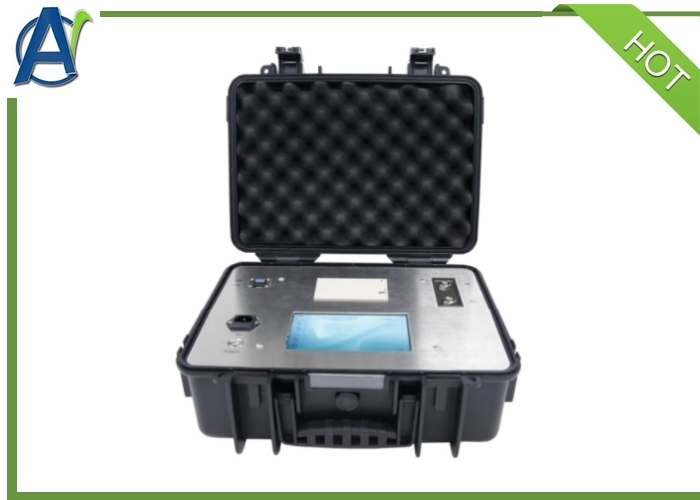

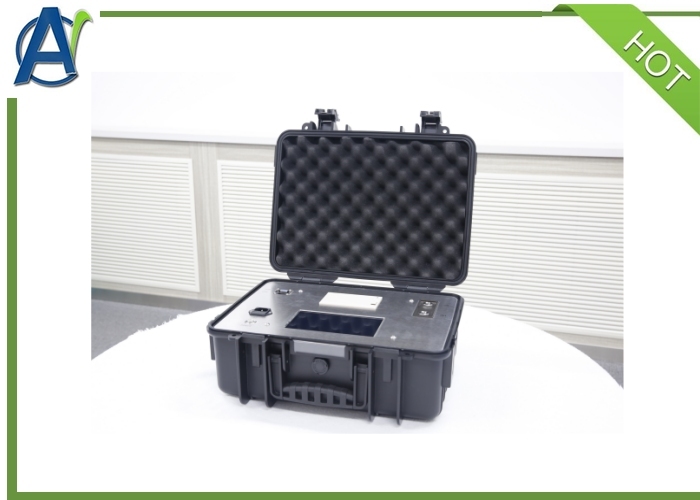

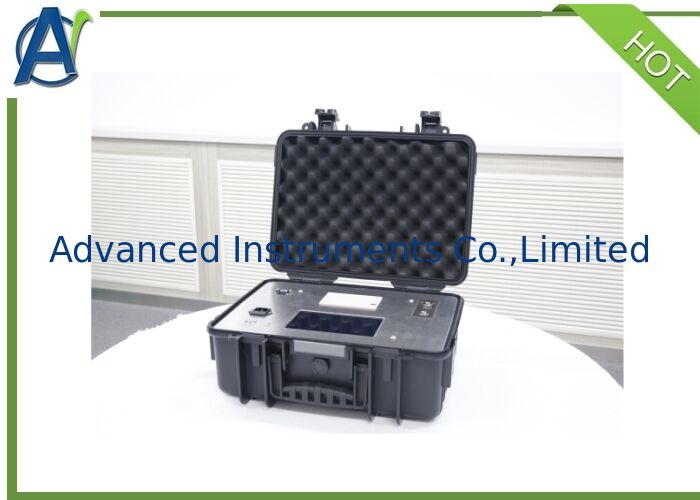

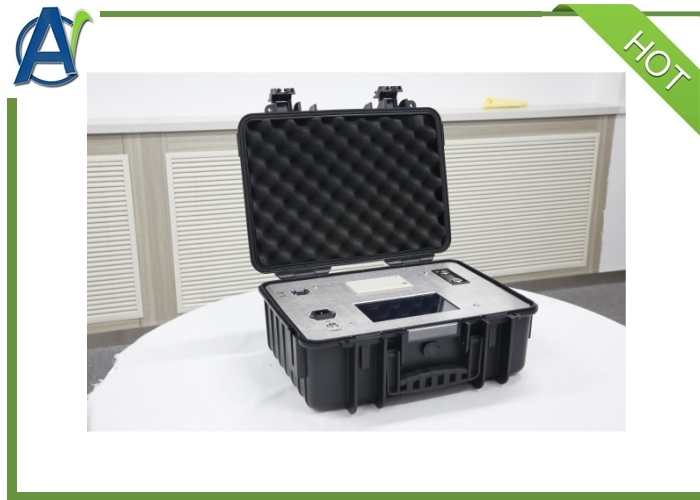

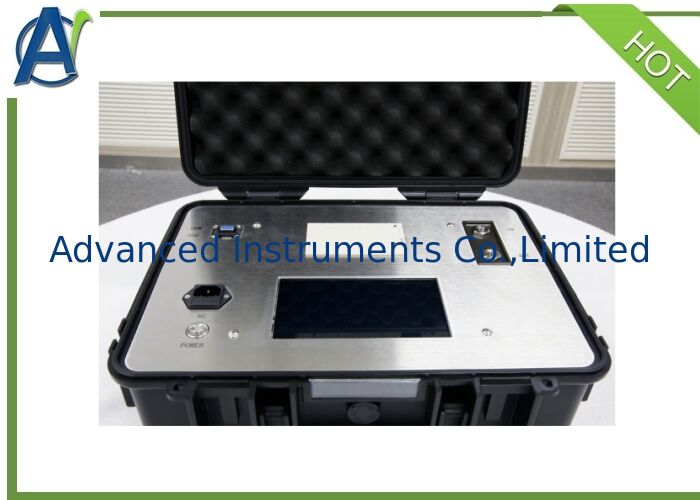

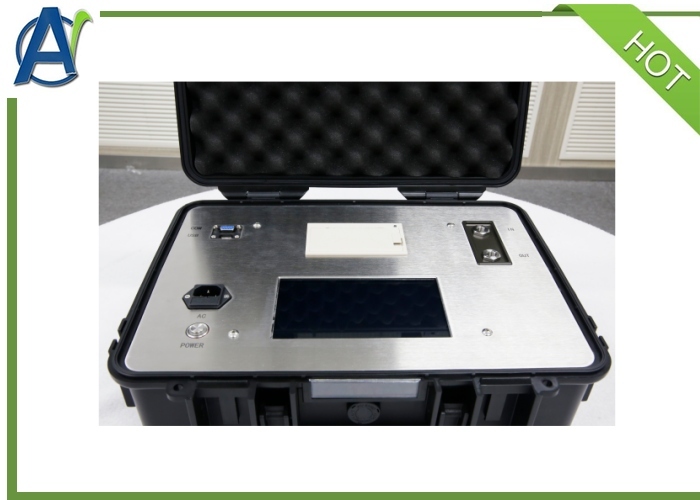

ISO4406 NAS1638 GJB420A/B Portable Oil Particle Counter Hydraulic Oil Cleanliness Tester

Portable Oil Particle Counter

I. Introduction:

Portable Lubricant Oil Particle Counter is photoresist (light shading) counting principle specified by the International Hydraulic Standards Committee.It is mainly for laboratory or on-site testing the degree of particle contamination and moisture in the oil. It has the advantages of small volume, light weight, fast detection speed, high precision and good repeatability, and can work under high temperature and high pressure environment. It is applicable for the measurement of engine oil, gear oil, transformer oil (i.e. insulating oil), hydraulic oil, lubricating oil, synthetic oil and other oils, widely used in aerospace, petrochemical, transportation ports, steel metallurgy, automobile manufacturing and other fields.

II. Main Features

• Adopts the light extinction (shading) testing principle designated by the International Hydraulic Standards Committee
• High-precision laser sensor with wide testing range, stable performance, low noise, and high resolution
• High-precision bidirectional plunger pump sampling method with adjustable injection speed and high sampling volume accuracy
• Piping made of 316L stainless steel and PTFE material, corrosion-resistant, suitable for testing various organic solvents and oil products
• Suitable for laboratory or on-site measurement; optional pressure reduction device available for online high-pressure measurement
• Can be connected to an external pressure chamber to form positive/negative pressure, enabling high-viscosity sample testing and sample negative-pressure degassing
• Compatible with various sampling containers including standard sampling bottles and cups, or can be directly connected to hydraulic systems for online detection, meeting testing requirements across different industries
• Built-in multiple calibration curves compatible with all common domestic and international standards
• Supports automatic calibration, manual calibration, and semi-counting calibration
• Built-in support for over ten common standards including GJB-420A, GJB-420B, NAS1638, GB/T14039, ISO4406, SAE4059cpc, SAE4059F, SAE749D, ROCT17216, QC/T29104, JB/T9737, DLT432, HH005-2018; a single test provides data results for all built-in standards
• Supports custom standard testing; up to 64 detection channels can be configured simultaneously according to customer requirements
• Supports 1,000 particle size channels for convenient particle size analysis
• Cleaning detection function included
• Built-in data analysis system capable of automatically determining sample grade per standards; features automatic data processing and printing
• 7-inch color touchscreen operation with Chinese/English input; freely switchable language interface with preset, input, modify, store, and upload functions for convenient and efficient operation
• Supports multiple user login accounts with functions for adding new users, setting permissions, and deleting existing users
• RS232 interface with Modbus RTU protocol support for connecting to computers or laboratory platforms for data processing; USB data storage also available
• Built-in lithium battery suitable for field operations, usable without external power supply
• Embedded design with high-strength housing, portable and suitable for various engineering machinery.

III. Specifications:

FAQ

1. What's the delivery time?

   About 30days.

2. What's your payment terms?

   30% paid by T/T in advance,70% paid by by T/T before shipping.

3. What's your guarantee terms?

   The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4. Can you supply training?

   We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
